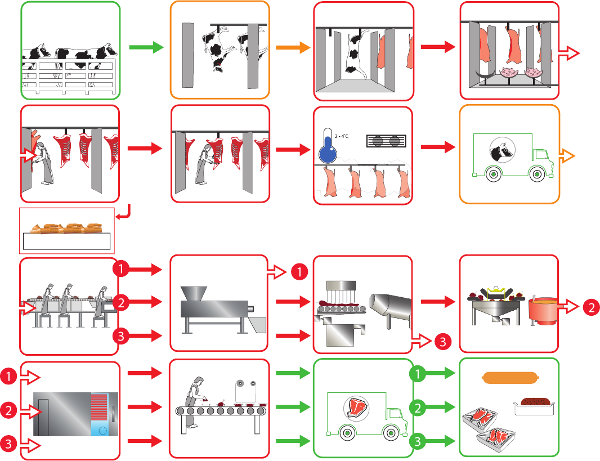

Lubricants in meat production
3. De-hiding/ Deheading:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
3. De-hiding/ Deheading |
1. Stock yards:
Lubricate | Application | Food grade -H1 compliant option |
transport chain | chain oils or grease NLGI 2, water resistant | Cassida Chain Oil or Cassida EPS 2 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
1. Stock yards |
2. Stunning/ Bleeding:
Lubricate | Application | Food grade -H1 compliant option |
central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
2. Stunning/ Bleeding |
4. Evisceration:
Lubricate | Application | Food grade -H1 compliant option |
central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
4. Evisceration |
5. Splitting:
Lubricate | Application | Food grade -H1 compliant option |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
5. Splitting |
6. Trimming/ Weighing/Grading:
Lubricate | Application | Food grade -H1 compliant option |
central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
6. Trimming/ Weighing/Grading |
7. Chilling:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
7. Chilling |
8. Transport:
Lubricate | Application | Food grade -H1 compliant option |
conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
8. Transport |
9. Cutting:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 or RLS (high rotation) |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
9. Cutting |
10. Forming/Filling:
Lubricate | Application | Food grade -H1 compliant option |
hydraulics | hydraulic oil | Cassida HF 68 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
10. Forming/Filling |
11. Grinding/ Brining/Mixing:
Lubricate | Application | Food grade -H1 compliant option |
hydraulics | hydraulic oil | Cassida HF 68 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
11. Grinding/ Brining/Mixing |
12. Marinating/ Frying:
Lubricate | Application | Food grade -H1 compliant option |
chain conveyor | no lubrication (frying fat) or chain oil | |
heat transfer system | heat transfer oil | FM HT 32 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
12. Marinating/ Frying |
13. Chiller/Freezer:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 00 or LTS 1 |
chain conveyor | low temperature chain oil | Cassida Chain Oil LT |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
13. Chiller/Freezer |
14. Slicing/Packing:
Lubricate | Application | Food grade -H1 compliant option |
chain conveyor | chain oils or grease NLGI 2, water resistant | Cassida Chain Oil or Cassida EPS 2 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
vacuum pump | vacuum pump oil | Cassida VP100 |
14. Slicing/Packing |
15. Transport |
Sausage |
Marinated Meat |
Meat Parts |
Offal Processing |
