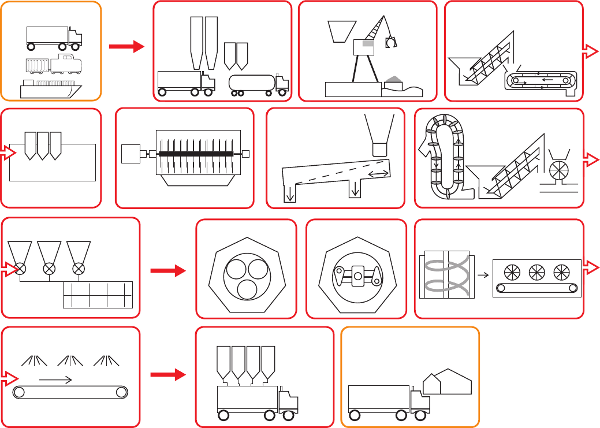

Lubricants in feed production
1. Received per road/train/boat:
Lubricate | Application | Food grade -H1 compliant option |
.. Grain | ||
.. Sugar byproducts | ||
.. Fat/oil/fatty acids | ||
.. Small functional ingredients |
1. Received per road/train/boat |
2. Unloading trucks:
Lubricate | Application | Food grade -H1 compliant option |
air compressor - blower | oil-free air | Cassida HF 100 or CR 100 |
air compressor - piston | compressor oil | Cassida CR 100 |
pump - gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
stirrer - gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
2. Unloading trucks |
3. Unloading boat/train:
Lubricate | Application | Food grade -H1 compliant option |
bucket | grease NLGI 2, water resistant | Cassida EPS 2 or HDS 2 |
3. Unloading boat/train |
4. Internal transport:
Lubricate | Application | Food grade -H1 compliant option |
conveyor - roller bearings | filled for life | Cassida EPS 2 or HDS 2 |
4. Internal transport |
5. Storage |
6. Hammer mill:
Lubricate | Application | Food grade -H1 compliant option |
hammermill - roller bearings | grease NLGI 2, water resistant | Cassida RLS 2 or HTS 2 (high temperature) |
6. Hammer mill |
7. Sieve:
Lubricate | Application | Food grade -H1 compliant option |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
sliding blocks | grease NLGI 2, water resistant | FM grease HD2 |
7. Sieve |
8. Transport to/from silo:
Lubricate | Application | Food grade -H1 compliant option |
screw conveyor - gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
bucket conveyor - gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
rotary valve - gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
8. Transport to/from silo |
9. Dosing/Premixing:
Lubricate | Application | Food grade -H1 compliant option |
rotary valve - gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
9. Dosing/Premixing |
10. Preconditioner:
Lubricate | Application | Food grade -H1 compliant option |
hydraulic | hydraulic oil | Cassida HF 68 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 or FM HD2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
10. Preconditioner |
11. Press:
Lubricate | Application | Food grade -H1 compliant option |
hydraulic | hydraulic oil | Cassida HF 68 |
roller adjustment | grease NLGI 2, water resistant | Cassida EPS 2 or HDS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
11. Press |
12. Cooler:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 or HDS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
12. Cooler |
13. Spraying:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 or HDS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
13. Spraying |
14. Storage |
15. Transport to farm:
Lubricate | Application | Food grade -H1 compliant option |
air compressor - blower | oil-free air | Cassida HF 100 or CR 100 |
air compressor - piston | compressor oil | Cassida CR 100 |
15. Transport to farm |
