Lubricants in canned food preparation

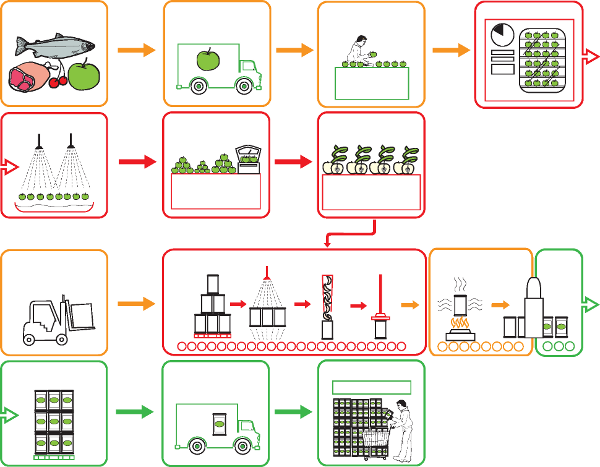

In the diagram below the process is given. Moving the mouse over the different steps will open a window showing points of lubrication and recommended lubricants.1. Raw Material Components:
Lubricate | Application | Food grade -H1 compliant option |
hydraulic harvesting | hydraulic oil | Cassida HF 68 |
1. Raw Material Components |
2. Transport:
Lubricate | Application | Food grade -H1 compliant option |
hydraulic unloading | hydraulic oil | Cassida HF 68 |
2. Transport |
3. Quality Checking:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
3. Quality Checking |
4. Cold Storing:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 00 or LTS 1 |
chain conveyor | low temperature chain oil | Cassida Chain Oil LT |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
4. Cold Storing |
6. Weighing/Grading:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
6. Weighing/Grading |
5. Rinsing:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
5. Rinsing |
7. Food preparation:
Lubricate | Application | Food grade -H1 compliant option |
chain oil | Cassida Chain Oil series | |
compressor oil | Cassida CR series | |
gear oils | Cassida GL series | |
greases, general purpose | General purpose | Cassida RLS series |
greases, extreme pressure | Extreme presuure | Cassida EPS series |
greases, heavy duty | Heavy duty | Cassida HDS series or HD2 |
greases, high temperature | High temperature | Cassida HTS2 |
greases, low temperature | Low temperature | Cassida LTS 1 |
hydraulics | Cassida HF series | |
heat transfer fluid | FM HT32 | |
maintenance spray | Cassida silicone | |
penetrating fluid | Cassida PL | |
rotary cooker fluid | Cassida RC220 |
7. Food preparation |
8. Forklift:
Lubricate | Application | Food grade -H1 compliant option |
vacuum pump oil | Cassida VP!00 | |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
chain | chain oils | Cassida chain oils |
hydraulics | hydraulic oils | Cassida HF68 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
8. Forklift |
Depalletizer:
Lubricate | Application | Food grade -H1 compliant option |
gear box | gear oil | Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear) |
vacuum pump | vacuum pump oil | Cassida VP100 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
hydraulics | hydraulic oil | Cassida HF 46 or 68 |
Depalletizer |
Can rinser:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear) |
Can rinser |
Can Filler:
Lubricate | Application | Food grade -H1 compliant option |
lubrication system | recirculation | Cassida HF 100 or GL 150 |
rotating filler: roller bearings main axis | automatic lubrication system | Cassida EPS 2 or HDS 2 |
rotating filler: product seal & bearing | silicon grease | Cassida VTS 3 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear) |
Can Filler |
Can Seaming:
Lubricate | Application | Food grade -H1 compliant option |
seamer heads - roller bearings | grease NLGI 1, water resistant | Cassida RLS 1 or EPS 1 |
seamer heads - roller bearings | automatic lubrication system | Cassida RLS 00 or RLS 0 |
lubrication system | total loss or recirculation | Cassida GLE 150, GLE 220 or FM TLS 150 |
lubrication system | recirculation (incl.seamer heads) | Cassida HF 100 or CR 100 |
roller bearings | grease NLGI 1 or 2, water res. | Cassida RLS 1 or 2, EPS 1 or 2 |
gear box | gear oil | Cassida GL 220 or GLE 220 |
main drive - gear box | gear oil | Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear) |
Can Seaming |
10. Cooker/ Pasteurizer:
Lubricate | Application | Food grade -H1 compliant option |
hydraulics | hydraulic oil | Cassida HF 32 |
lubrication system (cams, bearings) | total loss | Cassida GL 320 |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
roller bearings and cams | grease NLGI 0 (automatic) | Cassida RLS 0 or EPS 0 |
seal (in peroxide) | silicon grease | Cassida VTS 3 |
bearing (in peroxide) | extreme circumstance grease | Cassida XTS |
gear box | gear oil | Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear) |
10. Cooker/ Pasteurizer |
Labeling:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear) |
gear box - aggregate | gear oil | Cassida GL 150 or GLE 150 |
roller bearings - hot seal | grease NLGI 2, high temperature | Cassida HTS |
lubrication system | recirculation | Cassida HF 100 or GL 150 |
Labeling |
11. Packing:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
gear box | gear oil | Cassida GL 220 upto 460 |
lubrication system | chain oils | Cassida GL 220 |
shrink tunnel: lubrication system | chain oils, high temperature | Cassida GL 220 or WG 220 |
11. Packing |
12. Stack and Pallettize:
Lubricate | Application | Food grade -H1 compliant option |
roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
hydraulics | hydraulic oil | Cassida HF 68 (optional) |
gear box | gear oil | Cassida GL 220 upto 460 or WG 220 upto 460 (for worm gear) |
12. Stack and Pallettize |
13. Transport |
14. Customer Purchase |
Food Outlet |
9. |
For more information: FUCHS LUBRICANTS GmbH
