| Technologie > Lebensmittelschmiermitteln > Im Lebensmittelbereich > Geflügelfleisch |
download articleSchmiermittel in der Produktion van Geflügel
Einige Unterteile sind noch nicht ins Deutsch übersetzt worden.

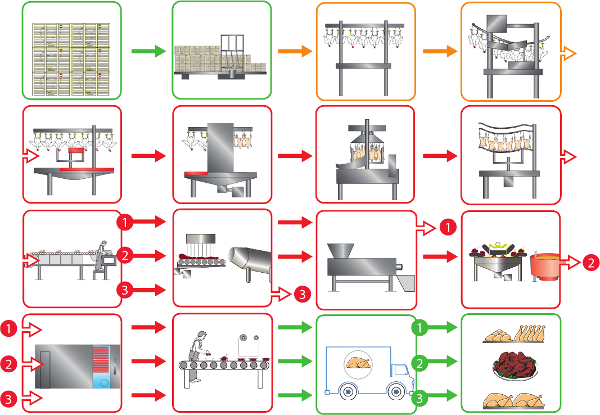

| 1. Live Birds |
2. Destacker:
| Lubricate | Application | Food grade -H1 compliant option |
| transport chain | chain oils or grease NLGI 2, water resistant | Cassida Chain Oil or Cassida EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| 2. Destacker |
3. Hanging:
| Lubricate | Application | Food grade -H1 compliant option |
| central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 3. Hanging |
4. Stunning:
| Lubricate | Application | Food grade -H1 compliant option |
| central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 4. Stunning |
5. Neck slicing/ Bleeding:
| Lubricate | Application | Food grade -H1 compliant option |
| central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 5. Neck slicing/ Bleeding |
6. Feathers/Head/Feet removed:
| Lubricate | Application | Food grade -H1 compliant option |
| central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 6. Feathers/Head/Feet removed |
7. Eviscerator:
| Lubricate | Application | Food grade -H1 compliant option |
| central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| vacuum pump | vacuum pump oil | Cassida VP100 |
| 7. Eviscerator |
8. Inspection/ Washing:
| Lubricate | Application | Food grade -H1 compliant option |
| central conveyor system | chain oils or grease NLGI 2, water resistant | Cassida HF100, Cassida Chain Oil 150 or Cassida grease EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 8. Inspection/ Washing |
9. Cutting/ Mincing:
| Lubricate | Application | Food grade -H1 compliant option |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 or RLS (high rotation) |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 9. Cutting/ Mincing |
10. Brining/ Tumbling:
| Lubricate | Application | Food grade -H1 compliant option |
| hydraulics | hydraulic oil | Cassida HF 68 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 10. Brining/ Tumbling |
11. Forming/Filling:
| Lubricate | Application | Food grade -H1 compliant option |
| hydraulics | hydraulic oil | Cassida HF 68 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| 11. Forming/Filling |
12. Battering/Frying:
| Lubricate | Application | Food grade -H1 compliant option |
| chain conveyor | no lubrication (frying fat) or chain oil | |
| heat transfer system | heat transfer oil | FM HT 32 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 12. Battering/Frying |
13. Chiller/ Freezer:
| Lubricate | Application | Food grade -H1 compliant option |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 00 or LTS 1 |
| chain conveyor | low temperature chain oil | Cassida Chain Oil LT |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| 13. Chiller/ Freezer |
14. Packing:
| Lubricate | Application | Food grade -H1 compliant option |
| chain conveyor | chain oils or grease NLGI 2, water resistant | Cassida Chain Oil or Cassida EPS 2 |
| roller bearings | grease NLGI 2, water resistant | Cassida EPS 2 |
| gear box | gear oil | Cassida GL 220 or GL 460 (for worm gear) |
| vacuum pump | vacuum pump oil | Cassida VP100 |
| 14. Packing |
| 15. Transport |
| Wings/Thighs/Legs |
| To the plate |
| Whole birds |
Für nähere Auskünfte: FUCHS LUBRICANTS GmbH
